Elite Power Group are a Fronius install partner which means we specialise in Fronius Wattpilot installations.
We install all variations of the Fronius Wattpilot, from the Go 11J, to the 22 J.
We can help you install a convenient electric vehicle charger for your home, so you can simply plug and forget and have your car fully recharged for the next day.
The Fronius Wattpilot can charge your electric vehicle with solar energy, providing your EV with a full-charge with sustainable energy.

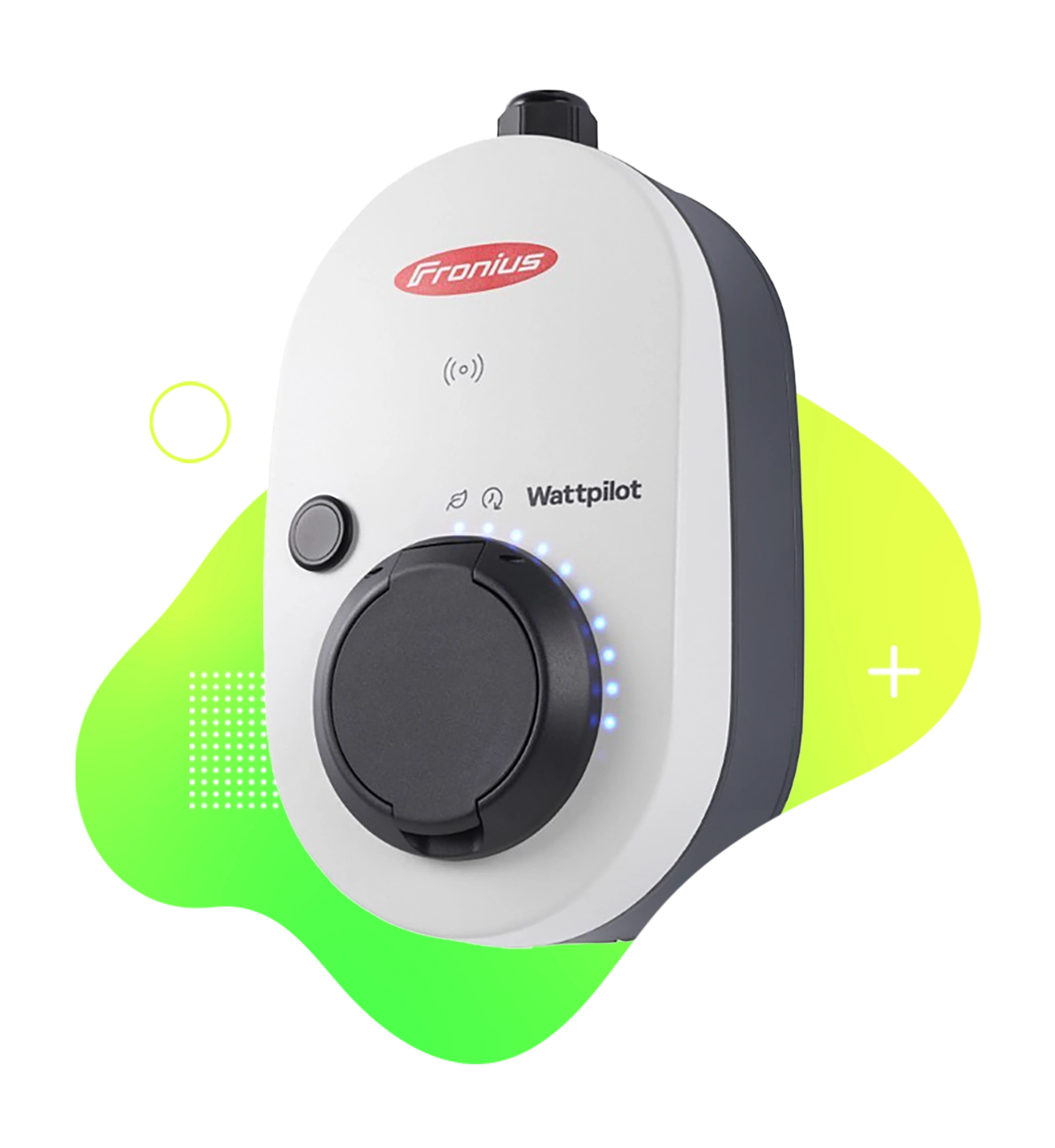

Solar Inverter manufacturer Fronius has increased its range of products that help users self-consume energy from their PV system. Their latest offering is the Fronius Wattpilot. A smart charging system for electric vehicle users. The Wattpilot comes in two versions, a "home" hard-wired version and a portable "Go" version. The portable Go version comes in two flavours, 11kW for single phase and 22kW if you have three-phase capability.
Like any new device these days, there's an app for that, and the Wattpilot is no different. The app allows you to choose the charging mode; you can also adjust the charging rate, anywhere from 10 amps up to 32 amps if you have three-phase power, and schedule charging times.
The idea behind the controls in the app is to configure your EV charging during the cheapest time of day or to utilise your excess solar.
Wattpilot Go 11 J | Wattpilot Go 22 J | Wattpilot Home 11 J | Wattpilot Home 22 J | ||
Max. Charging Power | 11kW | 22kW | 11kW | 22kW | |
Dimensions (l x w x h) | 28,7 x 15,5 x 10,9 cm | ||||
Mains connection |
CEE16 plug red 5-pin / 30 cm including neutral conductor |
CEE32 plug red 5-pin / 30 cm including neutral conductor |
5-pin cable / 180 cm including neutral conductor |
||
Optional adapter sets |
CEE32 red fused, CEE blue camping plug, safety plug 16A |
CEE16 red, CEE blue camping plug, safety plug 16A |
|||
Network connection | WLAN | ||||
Residual current device |
30 mA AC, 6 mA DC |
||||
Supply line cable cross-section |
Min. 2,5 mm² | Min. 6 mm² | Min. 2,5 mm² |
|
Wattpilot Brochure
|
|
Our YouTube Content
7.4 - 22kW
7 - 22kW
7.2 - 22kW
