Battery Energy Capacity vs Power Output: A Simple Guide⚡

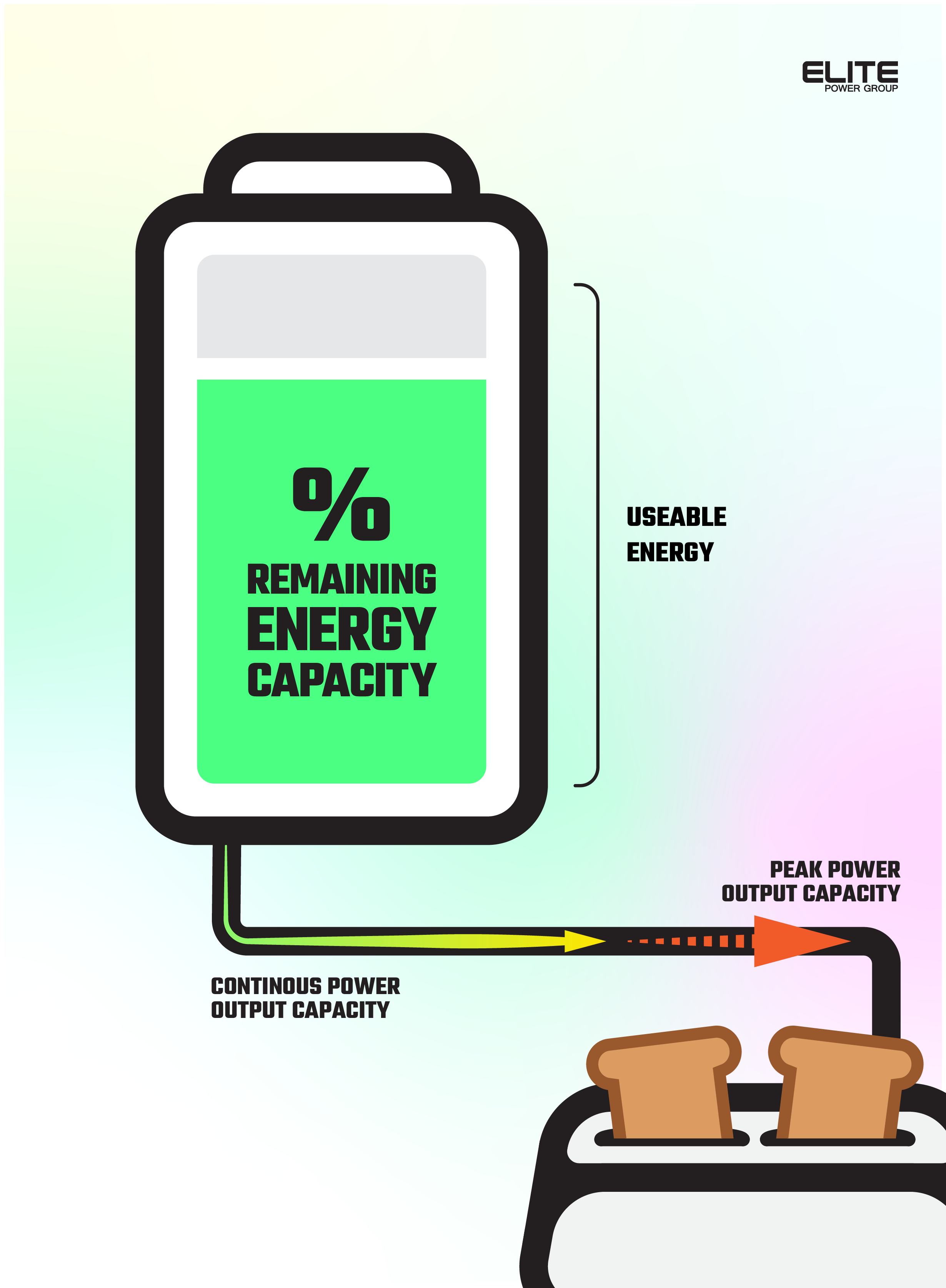

WHAT IS ENERGY CAPACITY?

Energy capacity is the total amount of energy a battery can hold, measured in kilowatt-hours (kWh). It is the number that determines how long your battery can supply power before it needs recharging.

Think of it like a water tank. The size of the tank tells you how much water is available in total. A larger tank means more stored energy and longer runtime before the battery is depleted.

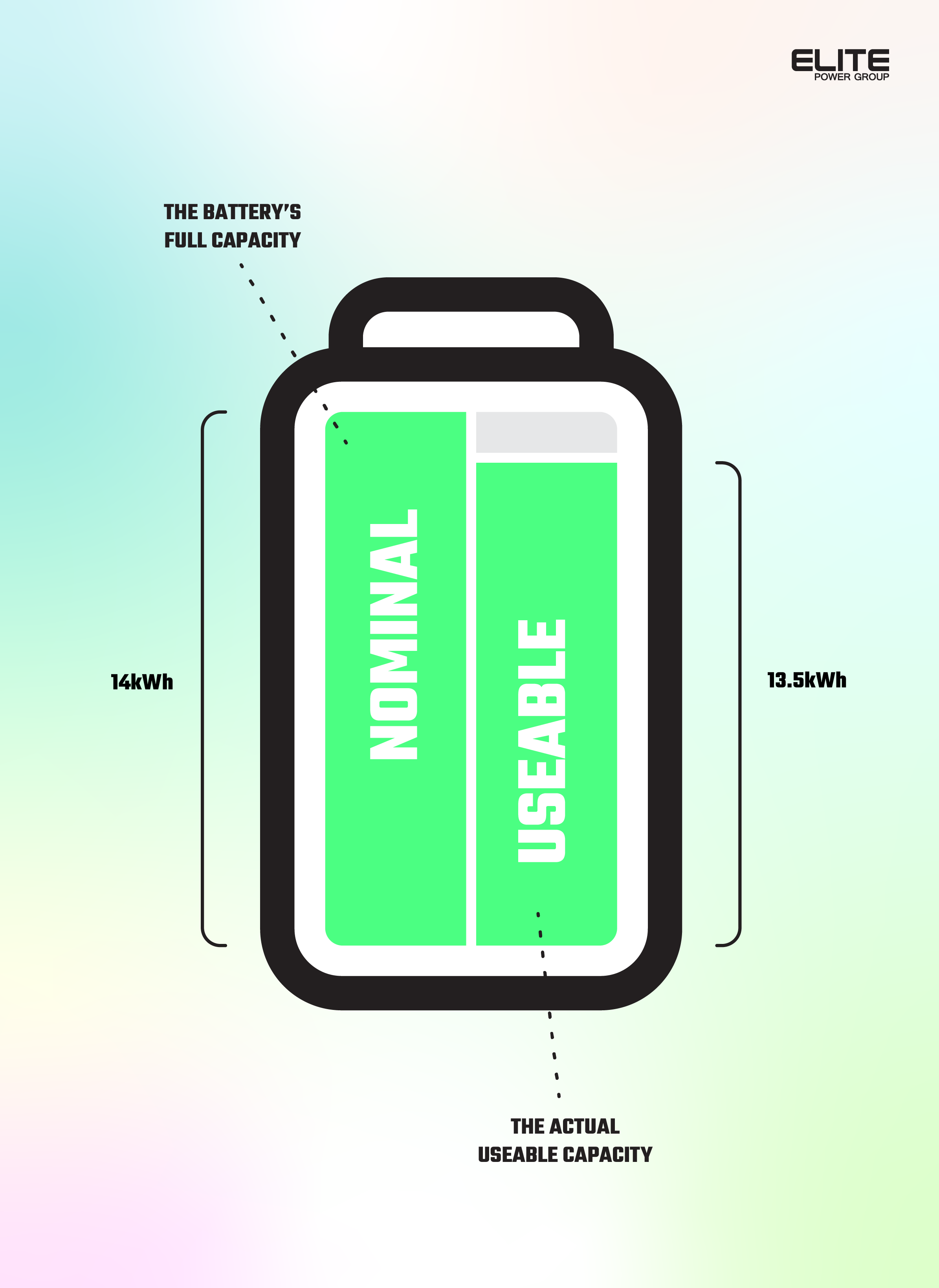

One thing worth knowing: most batteries list two capacity figures on their spec sheets.

The difference exists because regularly cycling a battery to its absolute limits degrades it faster, so manufacturers set a protected range to extend the battery's lifespan.

WHAT IS STATE-OF-CHARGE (SoC)?

State of charge is the current energy level of your battery expressed as a percentage, exactly like the battery indicator on your phone. 100% means fully charged, 0% means empty.

SoC is how your battery app reports available energy at any moment. The Tesla app, Sungrow's iSolarCloud, and Fronius Solar.web all display SoC in real time, letting you see how much stored energy is available before the sun rises or the grid goes down.

Most battery owners set a minimum SoC reserve - typically 10–20%, that the system holds back for grid outages rather than depleting through normal daily use.

WHAT IS DEPTH-OF-DISCHARGE (DoD)?

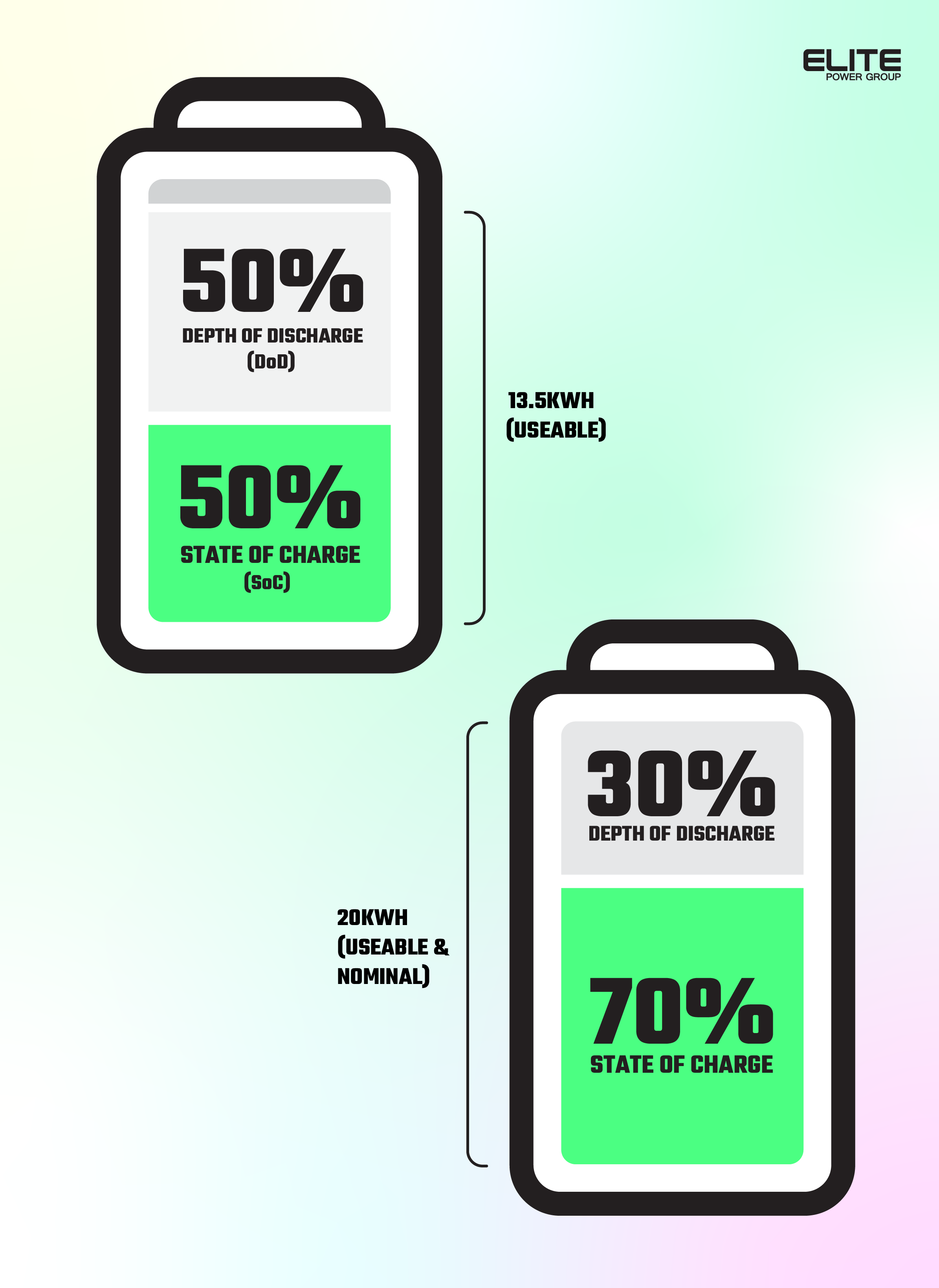

Depth of discharge is the flip side of SoC. Where SoC measures how much is left, DoD measures how much has been used, also as a percentage.

A battery sitting at 60% SoC has a 40% DoD. A battery drained to 0% has reached 100% DoD.

DoD matters because it directly connects to how the battery ages. Regularly discharging a battery to high DoD levels, pushing it close to empty every day - degrades the cells faster over time. This is exactly why manufacturers set useable capacity below nominal: they are building a protected range into the battery's operating parameters to prevent routine deep cycling.

Some batteries, particularly those using LFP (lithium iron phosphate) chemistry, are more tolerant of high DoD cycling and advertise 100% depth of discharge as a result. Sungrow SBR and SBH both do this. It is a genuine advantage for maximising useable storage over the battery's lifetime.

WHAT ARE BATTERY CHARGING & DISCHARGING CYCLES?

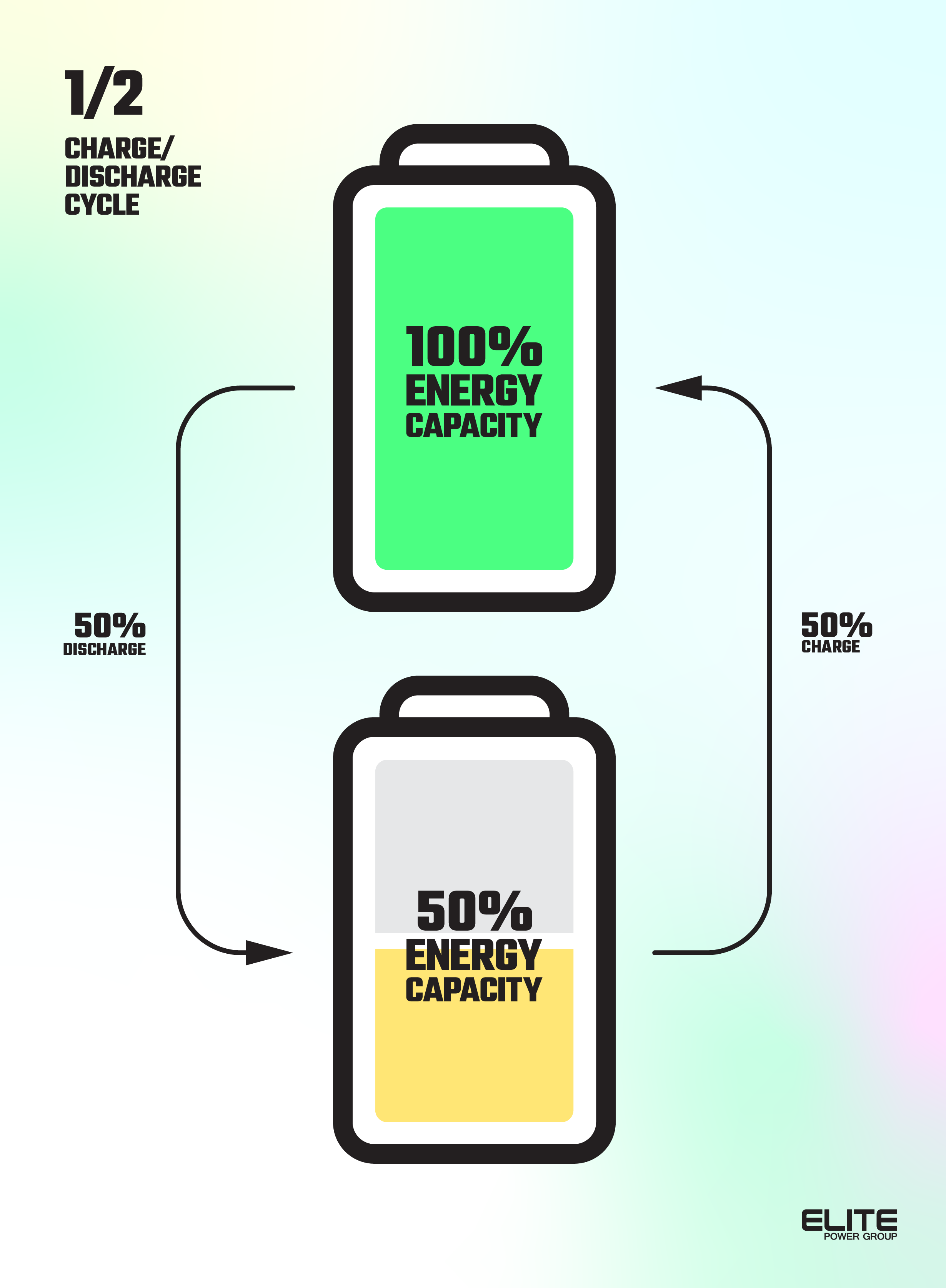

A charging cycle is one complete charge and discharge sequence. Charging from empty to full and discharging back to empty counts as one full cycle. In practice most home batteries do partial cycles, charging from 20% to 90% during the day and discharging back to 20% overnight, which counts as roughly 0.7 of a cycle.

Cycle count matters because it connects back to DoD and battery longevity. The more deeply a battery is cycled each day, the faster it accumulates cycle count and the sooner the warranty's cycle limit is approached.

Most battery warranties are structured as 10 years or a maximum number of cycles - whichever comes first. For typical residential partial cycling, the 10-year period expires well before the cycle limit is reached. The cycle limit becomes more relevant for batteries that are cycled multiple times per day, such as those participating in virtual power plant programs that discharge and recharge on demand.

The practical takeaway: for most homeowners, cycles are not a day-to-day concern. Understanding that deeper daily discharge means faster cycle accumulation is enough - which is another reason the useable capacity floor built into your battery is working in your favour.
